An n8n workflow audit should follow a business record from its trigger to the accepted destination. A green execution can tell you that the configured steps ran without a reported execution error. It does not, by itself, prove that the right customer, invoice or support ticket reached the right place.
Audit n8n by comparing expected business outcomes with destination records, then inspect the workflow paths that produced gaps or duplicates. Check credentials, branching, retries, error handling and recovery ownership. Request reproducible findings and bounded repairs rather than a generic recommendation to rebuild every workflow.
Imagine an enquiry form that enriches a contact and creates a CRM task. Staff occasionally discover an enquiry with no task, while another customer receives duplicate follow-ups. The first question is which outcomes are missing or repeated. Counting nodes or looking at the latest successful execution comes later.
This guide concerns the logic and operational evidence of existing workflows. Hosting topology is a separate decision. The examples are investigation patterns, not claims about a particular customer’s installation.

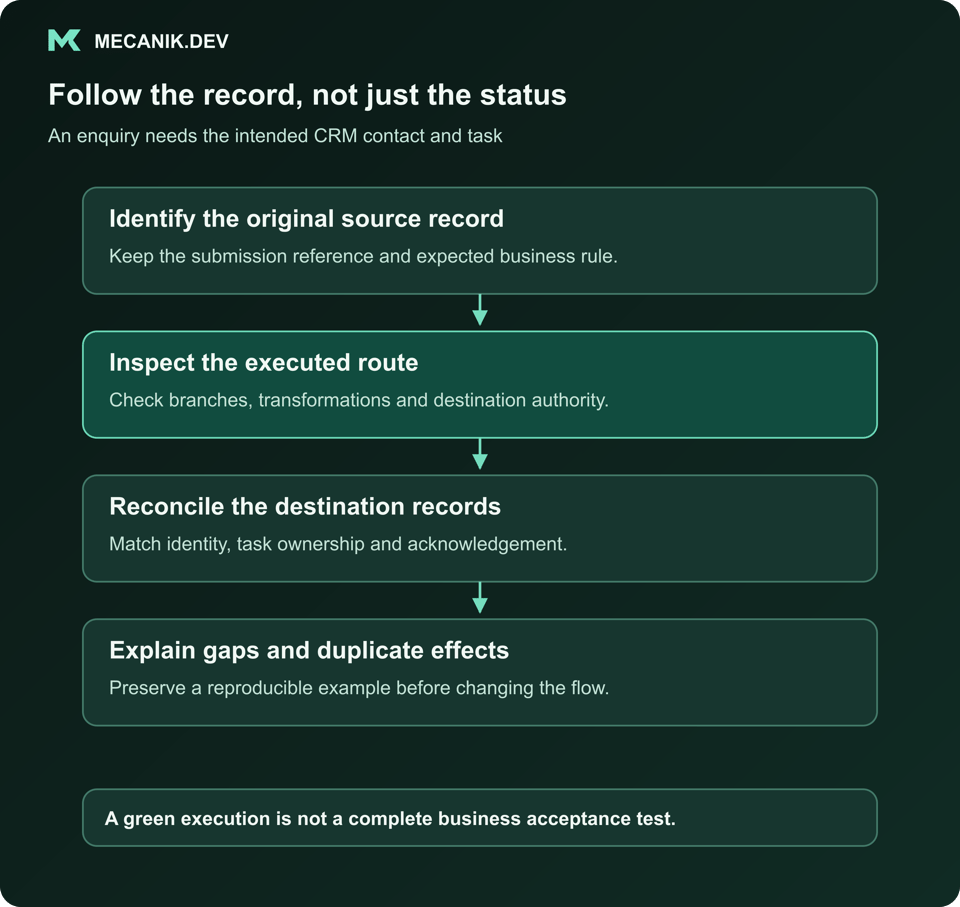

Start an n8n workflow audit with the missing outcome
Choose a workflow that has a clear operational consequence. Identify the original source record, the intended destination and the rule that links them. In the enquiry example, the form submission reference should lead to the expected CRM contact and assigned task.
Agree what counts as completion. Creating a contact without the task may be an incomplete outcome. Creating a task for the wrong organisation is a wrong outcome. An execution status cannot decide those business definitions; the workflow owner needs to do that before the audit.
Gather a small set of known good and known problematic examples. Preserve source references, execution identifiers and destination identifiers where available. Redact unnecessary personal information while retaining the fields needed to reproduce the route and matching decision.
Do not start by editing the live workflow until the evidence is understood. Changing branches, retention or credentials can make the original failure harder to investigate. A controlled copy and read-only inspection are often a better first step when ordinary operations must continue.
Reconcile records before reading every node
Compare the source population with destination acknowledgements for an agreed window. Explain which records are deliberately excluded, still waiting or under manual review. Otherwise an apparent missing record may be a legitimate business decision, while a superficially matching total conceals incorrect identities.
| Observation | Question for the audit | Evidence to preserve |
|---|---|---|
| No destination task | Was the branch skipped, rejected or interrupted? | Source reference and execution path |
| Duplicate tasks | Did replay create a second business effect? | Event, execution and destination references |
| Wrong contact match | Which identity rule selected the customer? | Matching inputs and decision output |
| Delayed completion | Was work queued, throttled or waiting for review? | Timestamps and owned waiting state |
| No execution record | Did the trigger arrive and was history retained? | Trigger logs and retention settings |
Totals are a useful starting check, but compare relationships too. A hundred source records and a hundred destination tasks can still be wrong when tasks are attached to the wrong customers. Reconciliation needs enough identity information to prove the intended association.

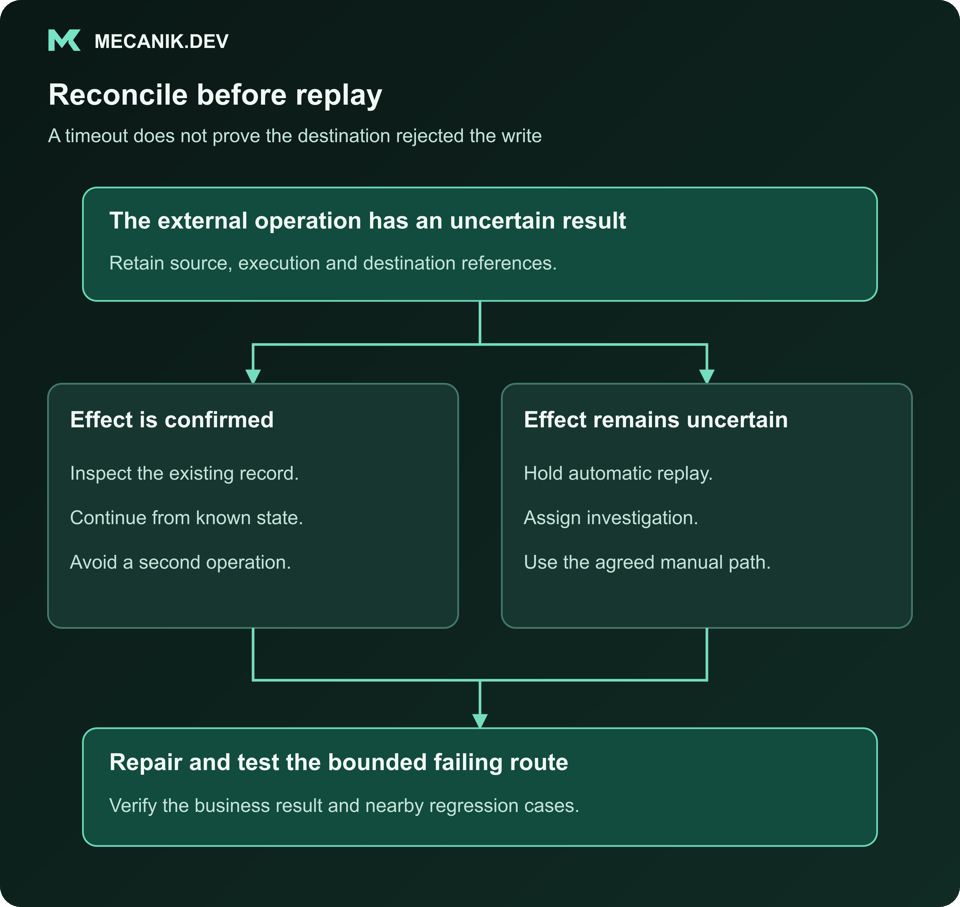

Separate unknown from failed
If an upstream request times out, establish whether the destination accepted it. An unknown outcome should remain unknown until inspected. Treating every timeout as permission to replay can create a duplicate record or a second notification.
Document the evidence that permits a retry. That might be a supported idempotency mechanism, a destination lookup using the source reference or a human decision after inspection. The appropriate mechanism depends on the destination API, not the visual convenience of adding another node.
Inspect branching and record transformations
Read the failing path with actual representative inputs. Check what happens when a field is empty, a response contains several matches or a node receives multiple items. Verify that a default route has a deliberate business meaning rather than quietly discarding cases the author did not anticipate.
Trace identifiers through transformations. Renaming a field is harmless only if later nodes still receive the intended value. Converting a customer reference into display text can break reconciliation even when the final payload looks plausible in the editor.
Review filtering and merge assumptions. A step that expects a single item should not silently select an arbitrary result when the destination returns several. Record which ambiguities require human review and which can be resolved by an authoritative business rule.
Keep ordinary variation in the test set. Names with accents, optional address lines and records created by different channels are legitimate inputs. The audit should help the workflow handle them or reject them visibly, rather than normalising away the evidence of a real integration defect.
Check what error handling actually covers
n8n’s error-handling documentation explains how an error workflow responds to execution failures. That is a useful mechanism for technical exceptions. A business requirement that was never encoded can remain unmet without producing such a failure.
For example, a destination might accept a request but create a record in a review queue. Decide whether that meets the workflow’s completion rule. If it does not, the workflow needs a visible waiting or exception state, not merely an alert for network errors.
| Control | Technical question | Operational question |
|---|---|---|
| Error workflow | Does the failure trigger the handler? | Who owns the resulting investigation? |
| Validation step | Does the input match the expected structure? | Are the required business facts present? |
| Retry path | Can the request run again? | Can it run again without another effect? |
| Success branch | Did the destination return an accepted response? | Did it complete the intended business action? |
Test alerts using the actual execution route. A manual editor demonstration is useful during development, but acceptance should cover the trigger, saved workflow settings and credentials used in normal operation. Record the circumstances under which an alert is expected.
Review credentials and write authority
Inventory which accounts each workflow uses and which operations those accounts can perform. A shared credential may give the automation more access than the task requires. Document who owns it, how access is revoked and what happens when a colleague leaves.
OWASP’s authorisation guidance recommends least privilege and checking permission on every request. Apply that principle at the destination boundary. A workflow description or a field labelled tenant does not enforce access by itself.
Separate test and production destinations deliberately. Confirm that a test replay cannot email a real customer or create a live commercial record. Masking a few sample fields is insufficient if the credential still points at the operational account.
Where the audit finds exposed credentials, follow the organisation’s incident and rotation process. Avoid reproducing secrets in screenshots, reports or exported workflow files. The report should identify the affected connection and remediation owner without becoming another place that stores the credential.
Prove recovery before changing retry behaviour
Create a controlled test for interruption after an external write. Inspect the destination, establish the existing effect and demonstrate the approved continuation. A recovery procedure should explain how the operator distinguishes no effect, confirmed effect and an outcome that still needs investigation.
Stripe’s webhook guidance is one vendor example: delivery order is not guaranteed, and duplicate deliveries need handling. Other destinations have their own contracts. Read the actual destination’s rules rather than assuming all integrations behave like the first service you connected.
Include manual continuation. An operator may need to complete work while a connector is unavailable. Record how that manual action is marked so the repaired automation does not perform it again later. Recovery includes coordination with people as well as restarting executions.
Do not confuse a restored n8n database with a reconciled business process. External systems may already contain changes made before the restore. Our software project takeover guide explains the wider ownership and handover questions when another team maintains the integration.
Commission repairs with clear acceptance evidence
Ask for findings grouped by business consequence and reproducibility. Each important finding should identify a failing example, the affected path, the proposed correction and the test that will establish the repair. A screenshot of a cleaner canvas is not sufficient acceptance evidence.
| Deliverable | What a useful proposal includes | Assumption to clarify |
|---|---|---|
| Investigation | Record reconciliation and reproducible findings | Access to retained execution history |
| Repair | Bounded changes to logic or destination handling | Availability of supported API operations |
| Verification | Successful, rejected and interrupted cases | Controlled test destinations |
| Handover | Recovery instructions and ownership map | Staff availability for review |
Request costs in GBP, separating investigation, repair, testing and ongoing support. Avoid pricing by node count alone. A short workflow that changes billing records can require more careful verification than a long read-only report.
Our software development service can begin with the failing workflow and the business record it should produce. Send us a redacted example and the outcome that is missing so the initial scope can focus on evidence, repair options and a maintainable handover.
Frequently Asked Questions
What does an n8n workflow audit check? It checks how source events become accepted business outcomes, including branching, transformations, credentials, retries, error handling and recovery. The audit should reconcile destination records as well as inspect execution history.
Can a successful execution still produce the wrong result? Yes. The configured steps may finish without reporting an error while selecting the wrong customer, omitting a required action or accepting incomplete information. Business acceptance needs explicit checks beyond the execution status.
Do we need to rebuild all our workflows? Not automatically. A bounded defect may be corrected and verified without replacing unrelated workflows. A rebuild recommendation should explain the structural limitation and compare it with targeted repair against the same accepted outcome.
Should every failed request retry automatically? No. First establish whether the destination may already have applied the operation. Automatic replay needs an appropriate idempotency or reconciliation design. Otherwise a transient failure can become a duplicated business effect.
What if the execution history has already been deleted? State that limitation explicitly. You may still investigate source and destination records, retained upstream logs and controlled reproductions. Avoid claiming to know the original failure path when the necessary evidence no longer exists. Part of the repair may be a proportionate retention policy and better references for future investigations.
Can the audit happen while workflows stay live? Often, with read-only evidence collection and controlled test copies. The proposal should identify any operation that needs pausing, the reason and the manual continuation plan. Live replay should never be an accidental consequence of investigation.
What should we provide for a useful quote? Describe the workflow, its business consequence, known problematic examples and the systems it connects. Explain who owns the credentials and whether controlled test destinations are available. Share secrets through an agreed secure process, not in the initial enquiry.
